The figure shows a liquid of given density flowing steadily in horizontal tube of varying cross – section. Cross sectional areas at A is 1.5 cm2 , and B 25 mm2 is , if the speed of liquid at B is 60 c

Question

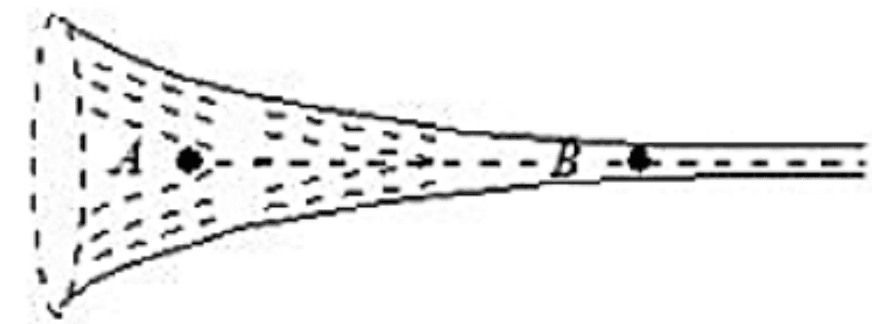

The figure shows a liquid of given density flowing steadily in horizontal tube of varying cross – section. Cross sectional areas at A is 1.5 cm2 , and B 25 mm2 is , if the speed of liquid at B is 60 cm/s then (PA - PB) is: (Given PA and PB are liquid pressures at A and B points) Density = 1000 k gm-

Accepted Answer

Answer: 175 Pa — By equation of continuity, A1 v1 = A2 v2(1.5 × 10−4)vA =(25 × 10−6) 60 cm /s vA = 10 cm /sBy Bernoulli’s theorem,
