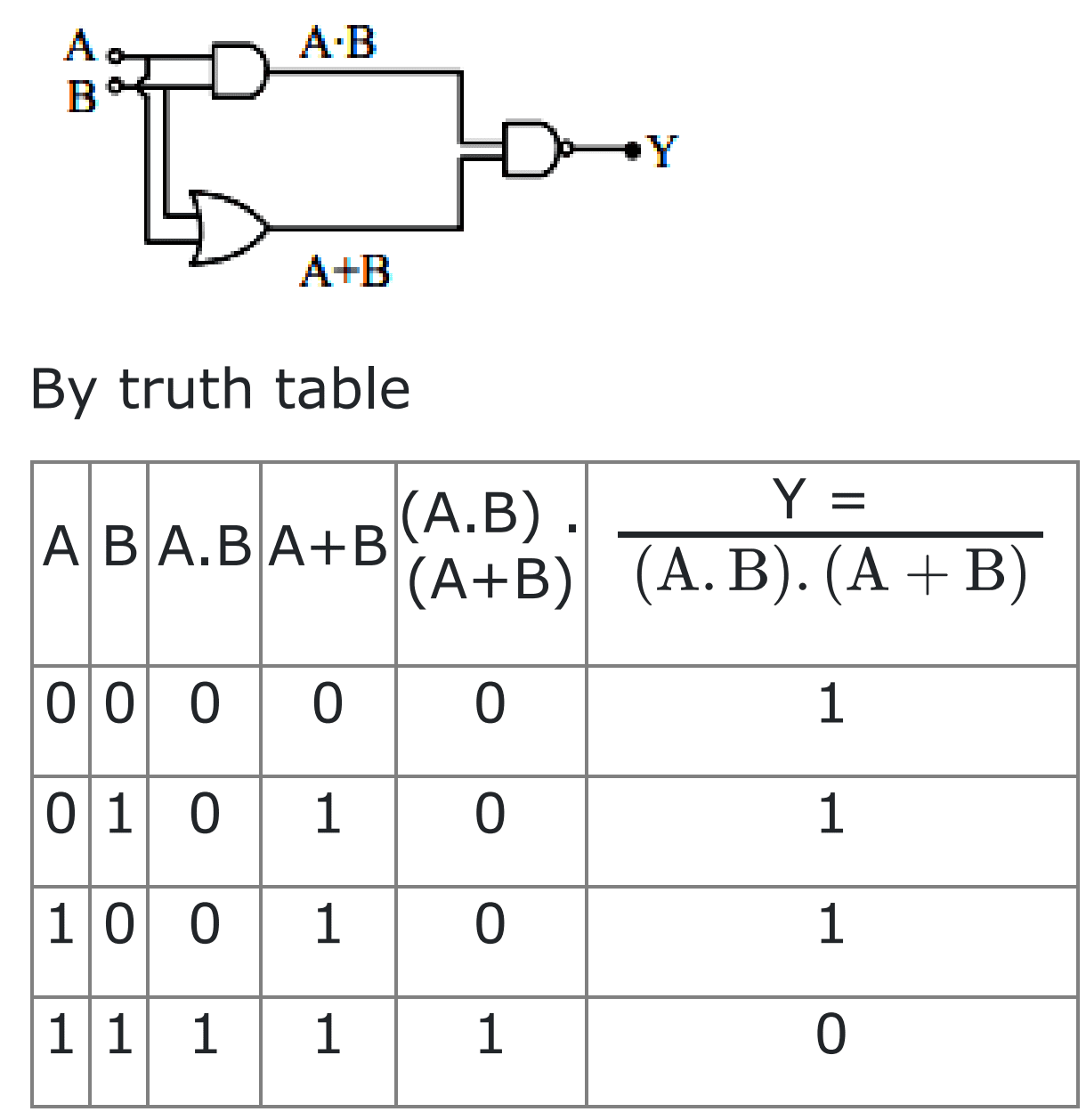

In the following logic circuit the sequence of the inputs A, B are (0, 0), (0, 1), (1, 0) and (1,1). The output Y for this sequence will be :

A

0, 1, 0, 1

B

1, 0, 1, 0

C

0, 0, 1, 1

D

1, 1, 1, 0
