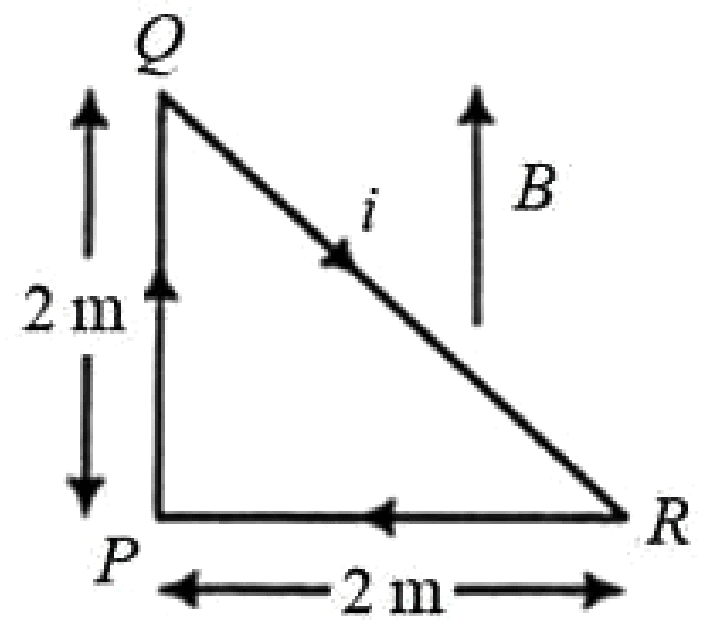

A loop PQR carries a current i = 2 A as shown in the figure. A uniform magnetic field B = 2T exists in space parallel to the plane of the loop. The magnetic torque on the loop is
Area = 1/2 × base × height = 2 m2
τ = iAB sinθ (sin 90 =1 )
= 2×2×2×1 = 8 Nm
