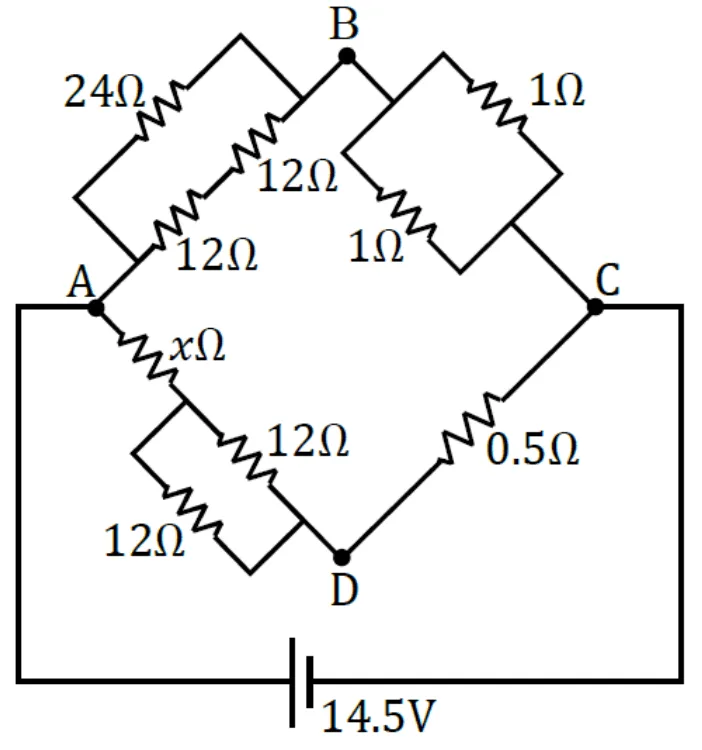

The value of unknown resistance (x) for which the potential between B and D will be zero in the arrangement shown, is :

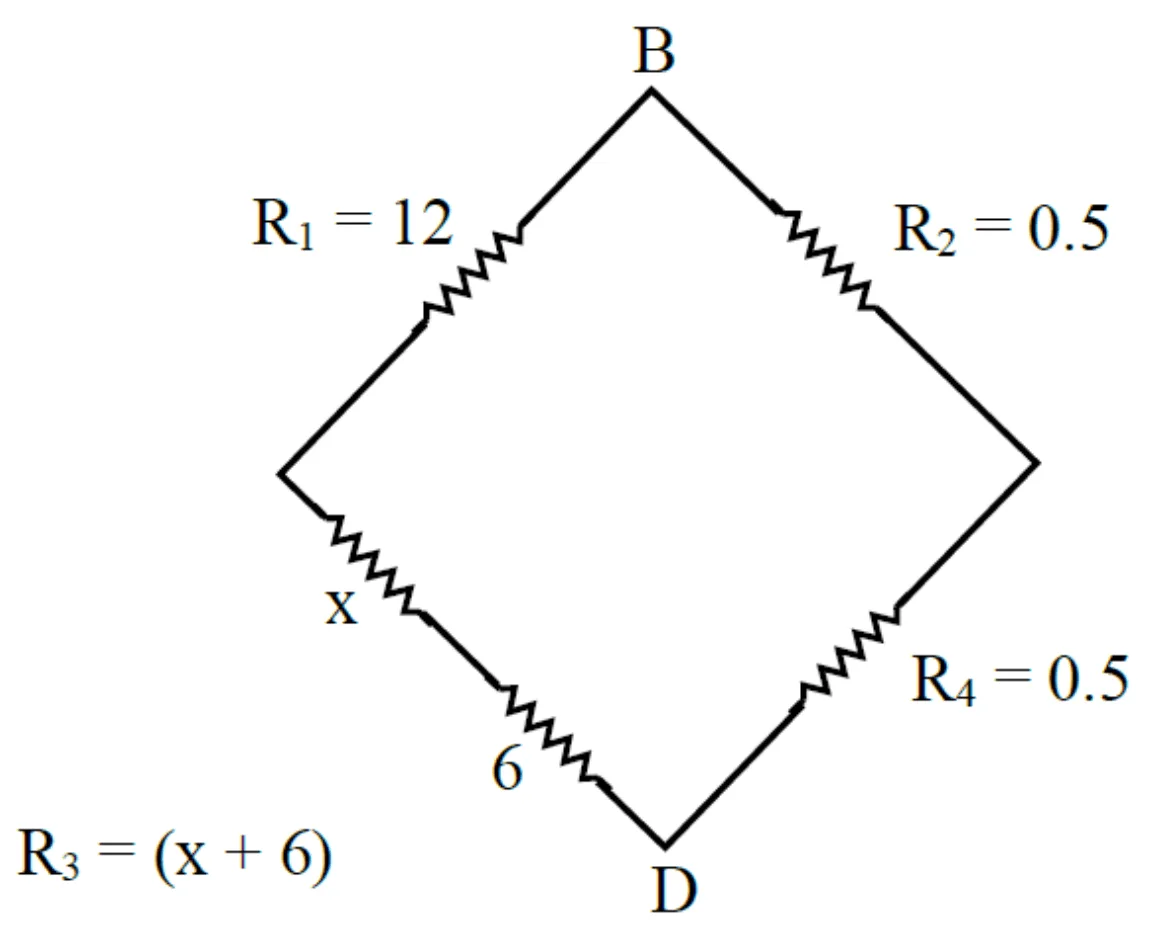

Potential difference between B & D will be zero in a balanced Wheatstone bridge (R1R4 = R2R3)
(12)(0.5) = (0.5)(x + 6)
x = 6
